OSG

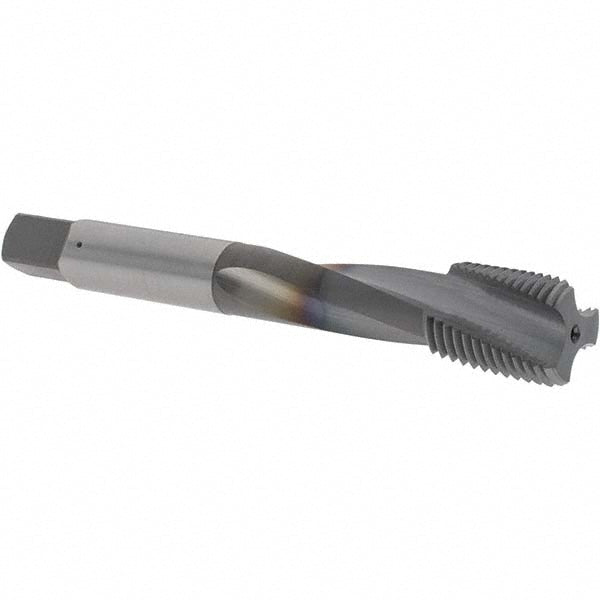

UNF Powdered Metal Tap, TiCN - OSG 0143508
MFR# 0143508Series 313
$70.64List $90.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The OSG 0143508 is a UNF Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferBottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length0.8260
Number of flutes3
Overall length2.4800
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Hardened Materials
Shank diameter0.1680
Square length0.4375
Square size0.2750
Threads per inch20
Thread directionRight Hand
Thread length0.6140
Thread limitH3
Thread standardUNF
