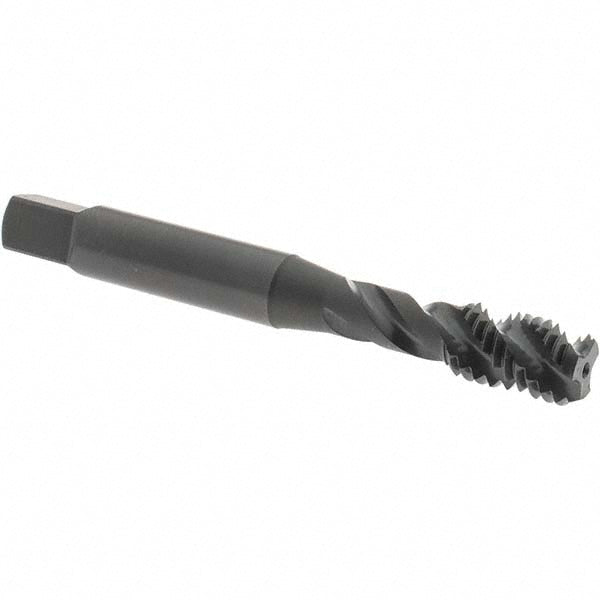

1/4-20 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 0146101
MFR# 0146101Series 302
$38.50List $49.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingSteam Oxide
Description
The OSG 0146101 is a 1/4-20 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Number of flutes3
Overall length in2-1/2
Threads per inch20
Thread length in1
Thread limitH3
Thread size in1/4-20
Thread standardUNC
