OSG

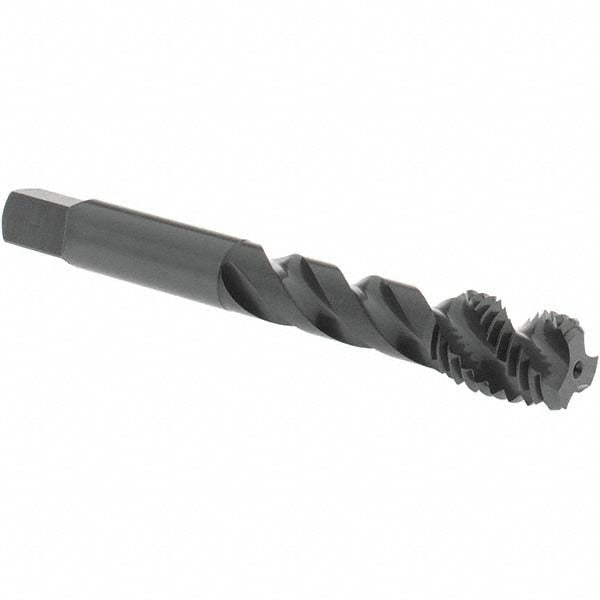

3/8-16 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 0146901
MFR# 0146901Series 302
$61.40List $78.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingSteam Oxide
Description
The OSG 0146901 is a 3/8-16 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Number of flutes3
Overall length in2-15/16
Threads per inch16
Thread length in1-1/4
Thread limitH4
Thread size in3/8-16
Thread standardUNC
