OSG
1/4-28 UNF Powdered Metal Machine Tap, TiCN - OSG 1005200308
MFR# 1005200308Series 10052
$31.95List $40.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-28
CoatingTiCN
Description

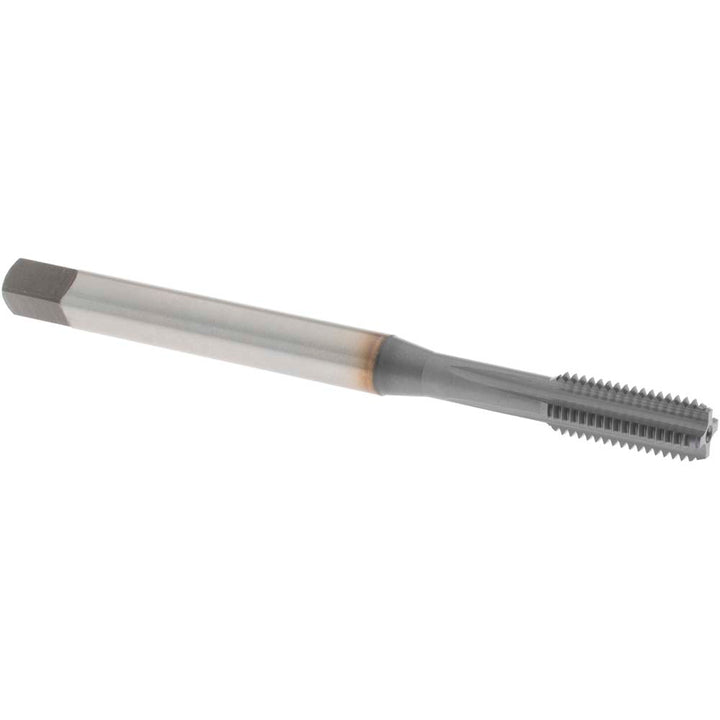

The OSG 1005200308 is a 1/4-28 UNF Powdered Metal Machine tap with a TiCN finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal
Material applicationAluminum; Cast Iron
Neck length1.1810
Number of flutes4
Overall length in2-1/2
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Tap typeMachine
Threads per inch28
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in1/4-28
Thread standardUNF
