OSG

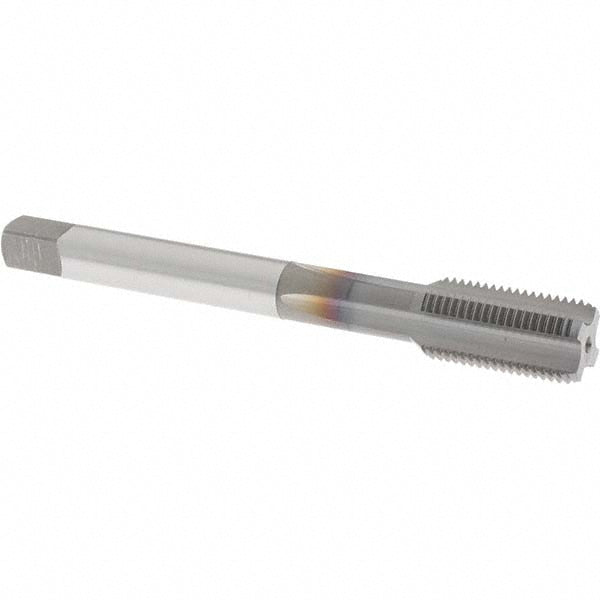

1/2-20 UNF Powdered Metal Machine Tap, TiCN - OSG 1005201708
MFR# 1005201708Series 10052
$59.00List $75.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/2-20
CoatingTiCN
Description
The OSG 1005201708 is a 1/2-20 UNF Powdered Metal Machine tap with a TiCN finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal
Material applicationAluminum; Cast Iron
Neck length1.9330
Number of flutes4
Overall length in3-3/8
OversizeNo
Shank diameter0.367
Square length0.4375
Square size0.275
Tap typeMachine
Threads per inch20
Thread directionRight Hand
Thread length in1-21/32
Thread limitH5
Thread size in1/2-20
Thread standardUNF
