OSG
5/8-18 UNF Powdered Metal Machine Tap, TiCN - OSG 1005202508
MFR# 1005202508Series 10052
$86.49List $110.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size5/8-18
CoatingTiCN
Description

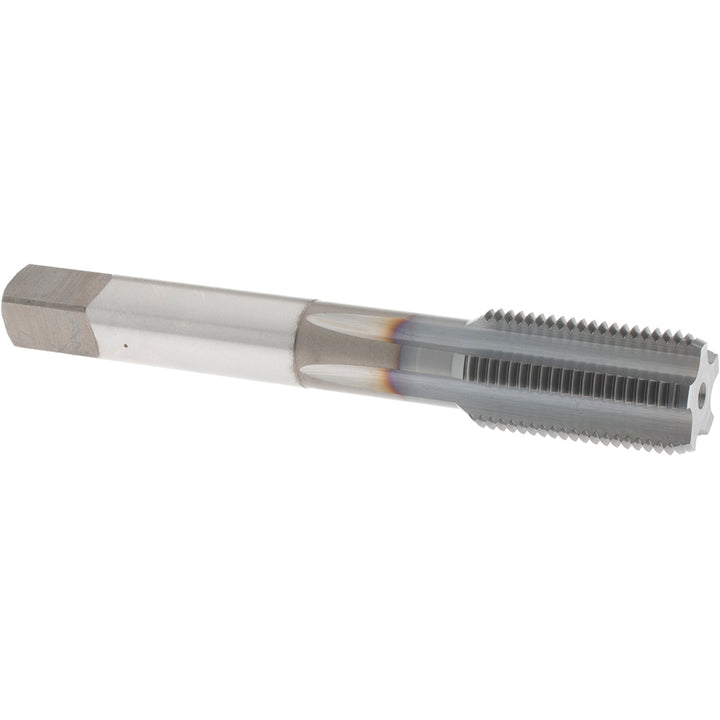

The OSG 1005202508 is a 5/8-18 UNF Powdered Metal Machine tap with a TiCN finish. 5 flutes.
Specifications
ApplicationTapping
ChamferBottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal
Material applicationAluminum; Cast Iron
Neck length2.1250
Number of flutes5
Overall length3.9370
OversizeNo
Shank diameter0.48
Square length0.5625
Square size0.36
Tap typeMachine
Threads per inch18
Thread directionRight Hand
Thread length in1-13/16
Thread limitH5
Thread size in5/8-18
Thread standardUNF
