OSG
9/16-18 UNF Powdered Metal Machine Tap, TiCN - OSG 1005602108
MFR# 1005602108Series 10056
$76.67List $98.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size9/16-18
CoatingTiCN
Description

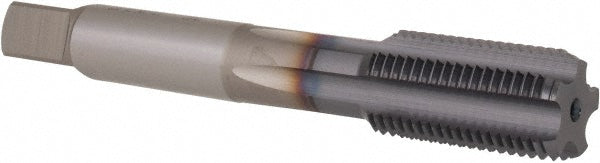

The OSG 1005602108 is a 9/16-18 UNF Powdered Metal Machine tap with a TiCN finish. 5 flutes.
Specifications
ChamferBottoming
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal
Material applicationAluminum; Cast Iron
Neck length1.9720
Number of flutes5
Overall length in3-19/32
OversizeNo
Shank diameter0.429
Square length0.5
Square size0.322
Tap typeMachine
Threads per inch18
Thread directionRight Hand
Thread length in1-21/32
Thread limitH5
Thread size in9/16-18
Thread standardUNF
