OSG

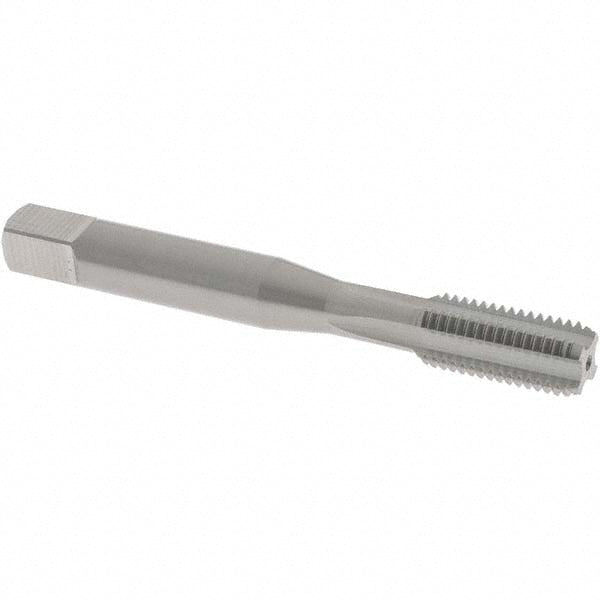

5/16-24 UNF Solid Carbide Machine Tap - OSG 1005910700
MFR# 1005910700Series 10059
$169.59List $217.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/16-24
Description
The OSG 1005910700 is a 5/16-24 UNF Solid Carbide Machine tap. 4 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coolant throughNo
MaterialSolid Carbide
Material applicationAluminum; Cast Aluminum; Cast Iron; Cobalt Chrome; Copper Alloy
Neck length1.1250
Number of flutes4
Overall length in2-15/16
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Tap typeMachine
Threads per inch24
Thread directionRight Hand
Thread length in1-1/8
Thread size in5/16-24
Thread standardUNF
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
