OSG

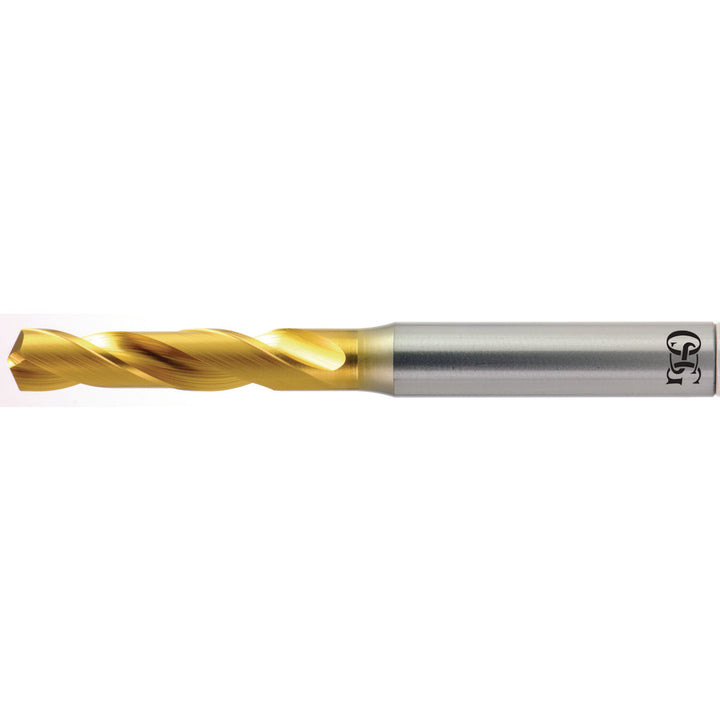

#46 Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10081005
MFR# 10081005Series 1000
$17.39List $22.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 10081005 is a #46 Cobalt High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel. 3/4 flute length, 2 overall length. Series 1000.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0810
Drill bit size range0.0000 to 0.1000
Drill bit size wire#46
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in3/4
Flute typeSpiral
Number of flutes2
Overall length in2
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
