OSG

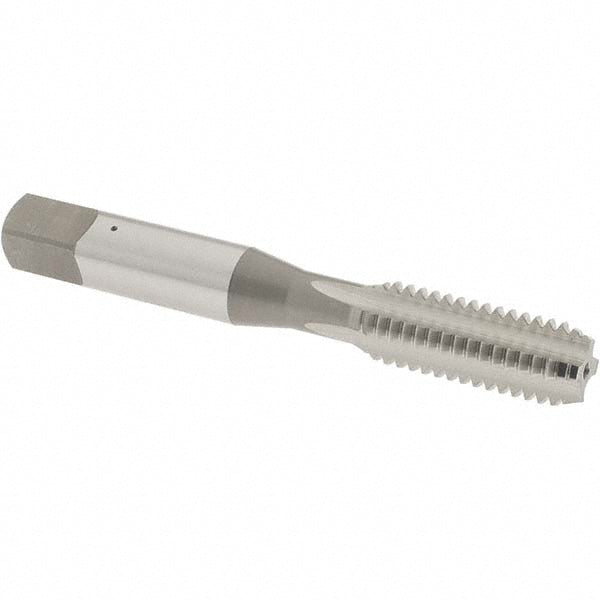

3/8-16 UNC High-Speed Steel Standard Tap - OSG 1009300
MFR# 1009300Series 101H
$15.18List $19.46
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/8-16
Description
The OSG 1009300 is a 3/8-16 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
Amount oversize0.0050
ChamferBottoming
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.4134
Number of flutes4
Overall length in2-15/16
OversizeYes
Shank diameter0.381
Square length0.4375
Square size0.286
Tap typeStandard
Threads per inch16
Thread directionRight Hand
Thread length in1-1/4
Thread limitH11
Thread size in3/8-16
Thread standardUNC
