OSG

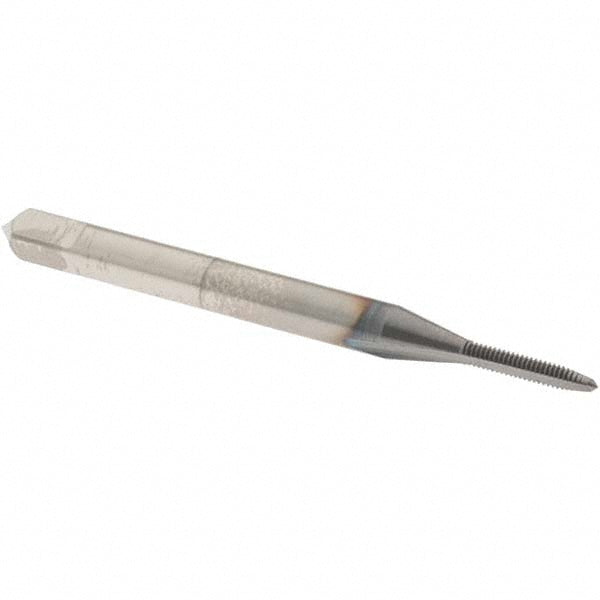

#0-80 UNF High-Speed Steel Standard Tap, TiCN - OSG 1010108
MFR# 1010108Series 102
$20.14List $25.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#0-80
CoatingTiCN
Description
The OSG 1010108 is a #0-80 UNF High-Speed Steel Standard tap with a TiCN finish. 2 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes2
Overall length in1-5/8
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Tap typeStandard
Threads per inch80
Thread directionRight Hand
Thread length in5/16
Thread limitH2
Thread size in#0-80
Thread standardUNF
