OSG

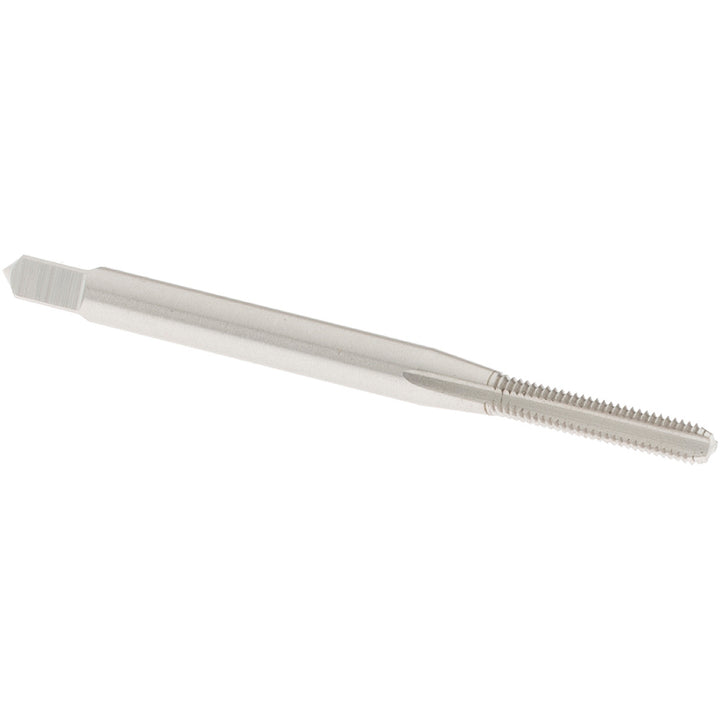

#3-56 UNF High-Speed Steel Standard Tap - OSG 1012000
MFR# 1012000Series 102
$12.28List $15.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#3-56
Description
The OSG 1012000 is a #3-56 UNF High-Speed Steel Standard tap. 3 flutes.
Specifications
ApplicationTapping
ChamferBottoming
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes3
Overall length in1-13/16
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Tap typeStandard
Threads per inch56
Thread directionRight Hand
Thread length in1/2
Thread limitH2
Thread size in#3-56
Thread standardUNF
