OSG

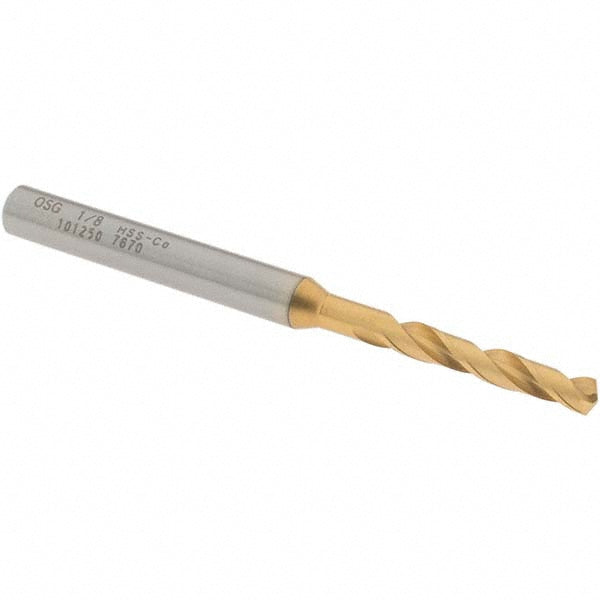

1/8" Cobalt High Speed Steel Screw Machine Drill Bit, TiN, 130° point - OSG 10125005
MFR# 10125005Series 1000
$17.39List $22.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTiN
Description
The OSG 10125005 is a 1/8" Cobalt High Speed Steel Screw Machine drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 7/8 flute length, 2-5/16in overall length. Series 1000.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size in1/8
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in7/8
Flute typeSpiral
Number of flutes2
Overall length in2-5/16in
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank diameter0.1875
Shank length in1-3/16in
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
