OSG
#5-40 UNC High-Speed Steel Standard Tap - OSG 1013100
MFR# 1013100Series 102
$9.02List $11.56
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-40
Description

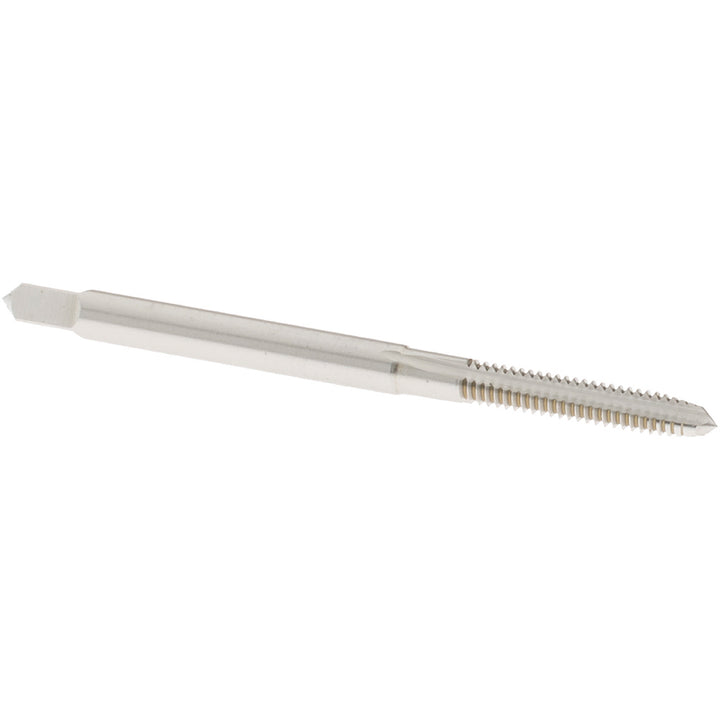

The OSG 1013100 is a #5-40 UNC High-Speed Steel Standard tap. 3 flutes.
Specifications
ApplicationTapping
ChamferPlug
Class of fit2B; 3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.7449
Number of flutes3
Overall length in1-15/16
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Tap typeStandard
Threads per inch40
Thread directionRight Hand
Thread length in5/8
Thread limitH2
Thread size in#5-40
Thread standardUNC
