OSG
#5-40 UNC High-Speed Steel Standard Tap, TiCN - OSG 1013108
MFR# 1013108Series 102
$11.04List $13.92
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-40
CoatingTiCN
Description

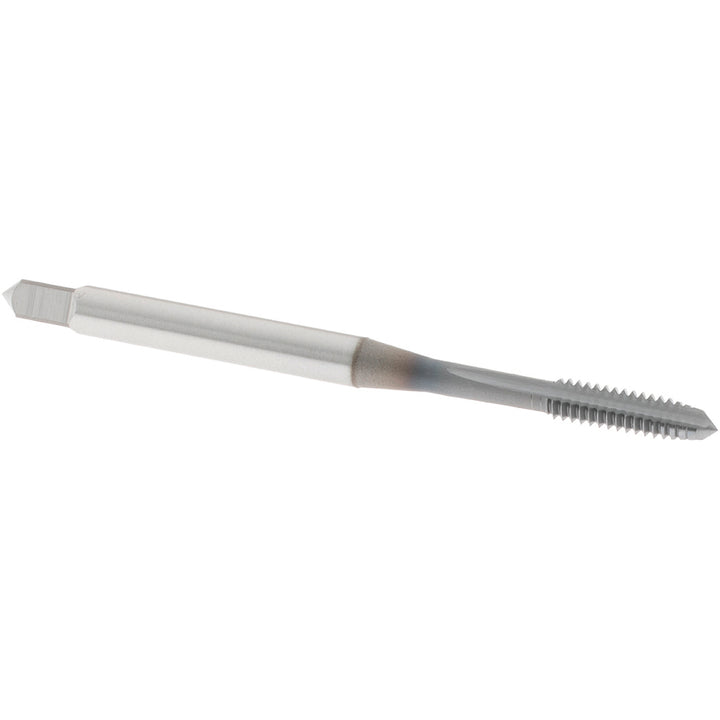

The OSG 1013108 is a #5-40 UNC High-Speed Steel Standard tap with a TiCN finish. 3 flutes.
Specifications
ApplicationTapping
ChamferPlug
Class of fit2B; 3B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.7449
Number of flutes3
Overall length in1-15/16
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Tap typeStandard
Threads per inch40
Thread directionRight Hand
Thread length in5/8
Thread limitH2
Thread size in#5-40
Thread standardUNC
