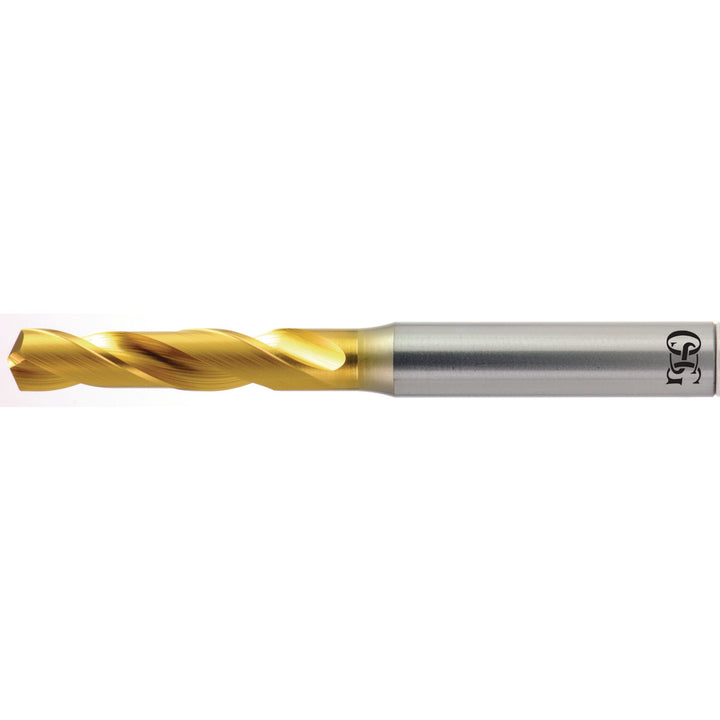

#23 Cobalt High Speed Steel Screw Machine Drill Bit, TiN, 130° point - OSG 10154005
MFR# 10154005Series 1000
$23.20List $29.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 10154005 is a #23 Cobalt High Speed Steel Screw Machine drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 1 flute length, 2-7/16 overall length. Series 1000.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1540
Drill bit size range0.1500 to 0.2000
Drill bit size wire#23
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1
Flute typeSpiral
Number of flutes2
Overall length in2-7/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank diameter0.1875
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
