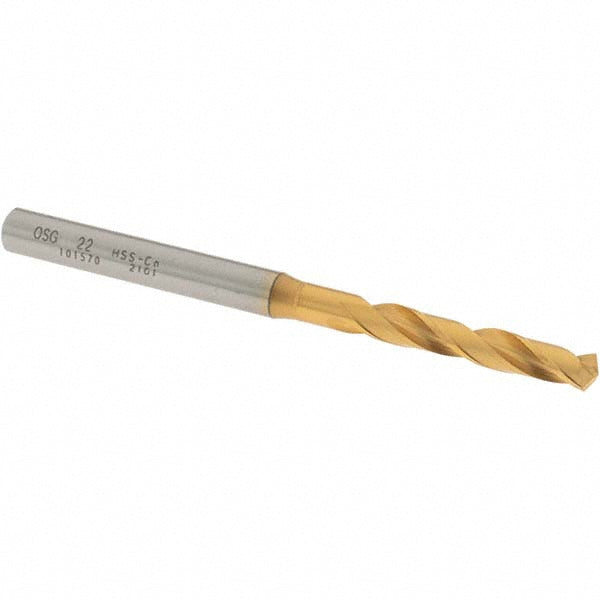

#22 Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10157005
MFR# 10157005Series 1000
$23.20List $29.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 10157005 is a #22 Cobalt High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel. 1-1/16 flute length, 2-1/2 overall length. Series 1000.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1570
Drill bit size range0.1500 to 0.2000
Drill bit size wire#22
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-1/16
Flute typeSpiral
Number of flutes2
Overall length in2-1/2
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
