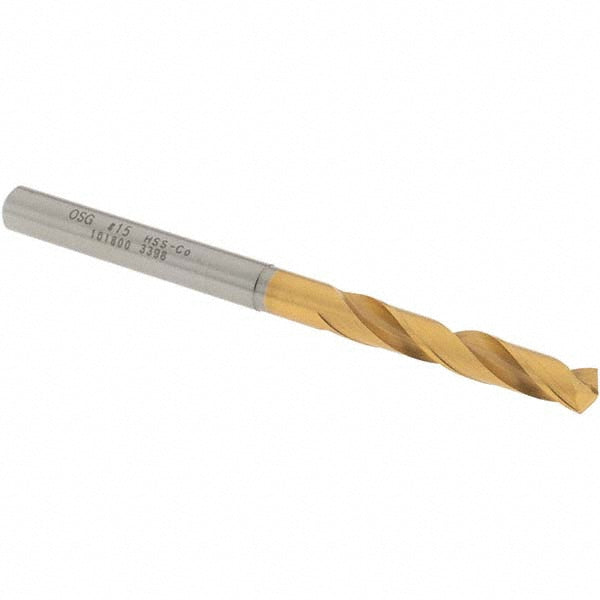

#15 Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10180005

OSG

#15 Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10180005

MFR# 10180005Series 1000

$25.49List $32.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 10180005 is a #15 Cobalt High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel. 1-1/8 flute length, 2-9/16 overall length. Series 1000.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1800
Drill bit size range0.1500 to 0.2000
Drill bit size wire#15
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-1/8
Flute typeSpiral
Number of flutes2
Overall length in2-9/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
