OSG

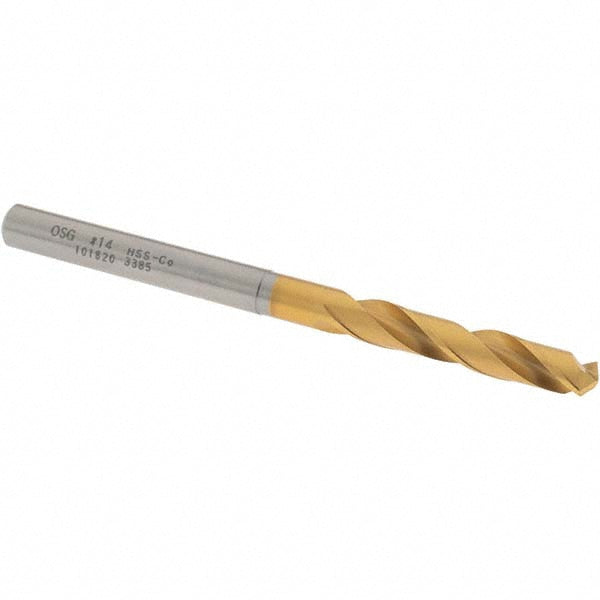

#14 Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10182005
MFR# 10182005Series 1000
$25.49List $32.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 10182005 is a #14 Cobalt High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel. 1-1/8 flute length, 2-9/16 overall length. Series 1000.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1820
Drill bit size range0.1500 to 0.2000
Drill bit size wire#14
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-1/8
Flute typeSpiral
Number of flutes2
Overall length in2-9/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
