OSG

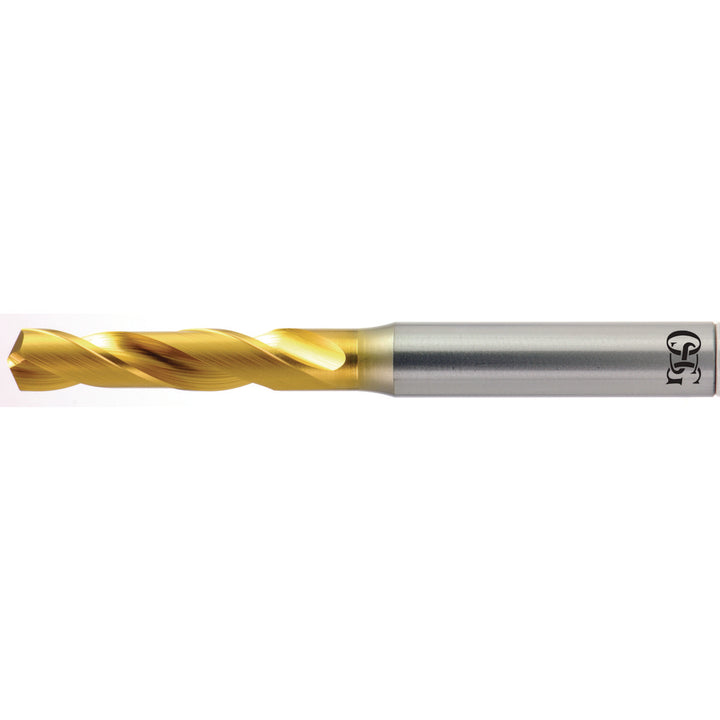

#11 Cobalt High Speed Steel Screw Machine Drill Bit, TiN, 130° point - OSG 10191005
MFR# 10191005Series 1000
$26.66List $34.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 10191005 is a #11 Cobalt High Speed Steel Screw Machine drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 1-3/16 flute length, 3 overall length. Series 1000.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1910
Drill bit size range0.1500 to 0.2000
Drill bit size wire#11
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-3/16
Flute typeSpiral
Number of flutes2
Overall length in3
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank diameter0.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
