OSG

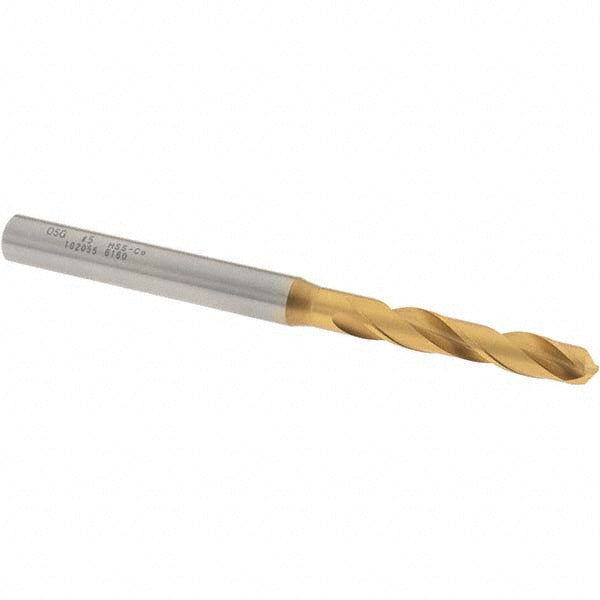

#5 Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10205505
MFR# 10205505Series 1000
$31.31List $40.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 10205505 is a #5 Cobalt High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel. 1-1/4 flute length, 3-1/16 overall length. Series 1000.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.2055
Drill bit size range0.2000 to 0.2500
Drill bit size wire#5
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-1/4
Flute typeSpiral
Number of flutes2
Overall length in3-1/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
