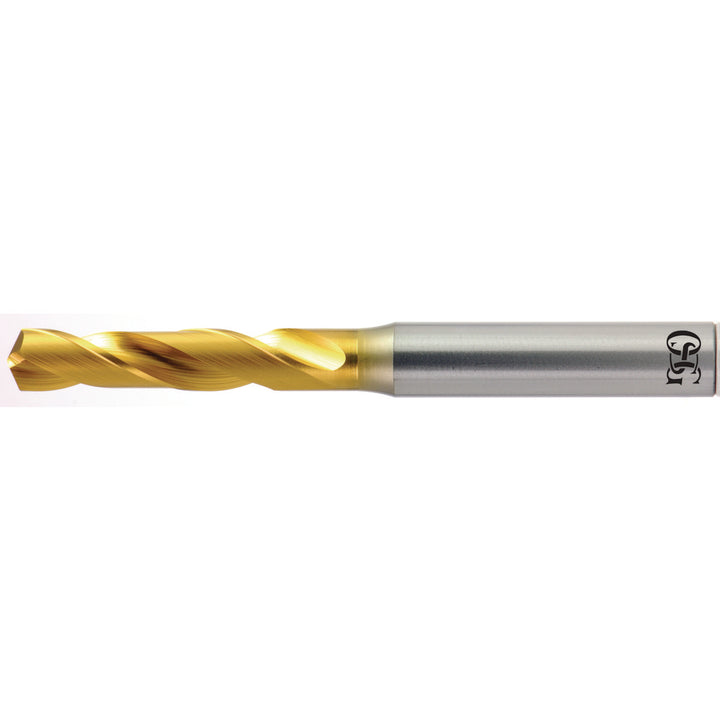

#4 Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10209005
MFR# 10209005Series 1000
$35.05List $44.18
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 10209005 is a #4 Cobalt High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel. 1-1/4 flute length, 3-1/16 overall length. Series 1000.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.2090
Drill bit size range0.2000 to 0.2500
Drill bit size wire#4
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-1/4
Flute typeSpiral
Number of flutes2
Overall length in3-1/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
