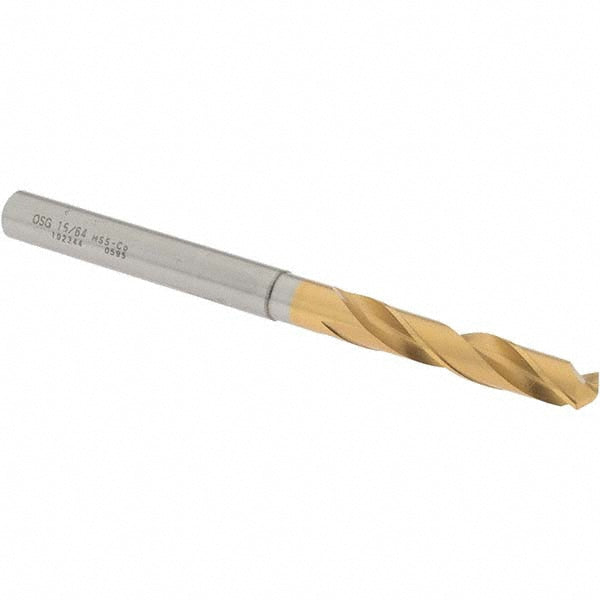

15/64" Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10234405

OSG

15/64" Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10234405

MFR# 10234405Series 1000

$38.24List $49.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/64
Flutes2
CoatingCoated

Description

The OSG 10234405 is a 15/64" Cobalt High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel. 1-5/16 flute length, 3-1/8 overall length. Series 1000.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size in15/64
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-5/16
Flute typeSpiral
Number of flutes2
Overall length in3-1/8
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank length in1-9/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
