OSG

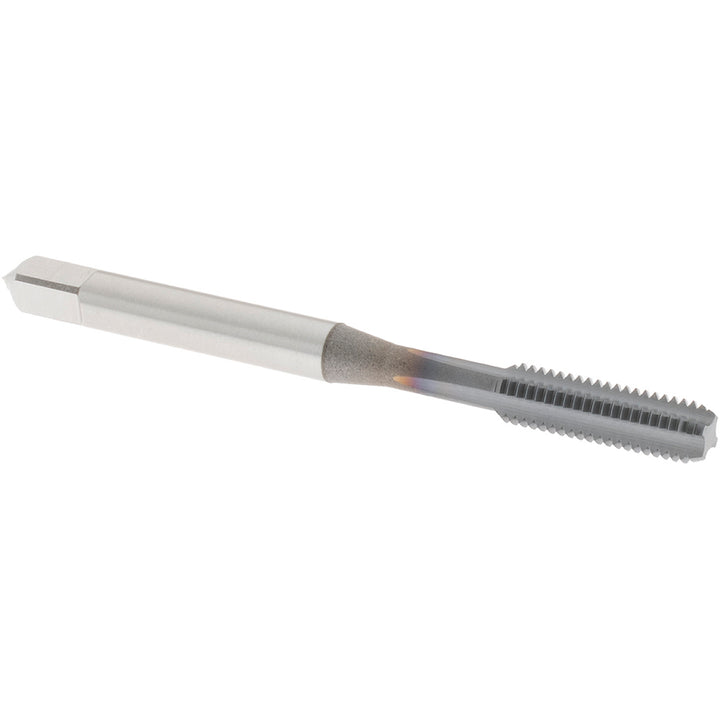

#10-32 UNF High-Speed Steel Standard Tap, TiCN - OSG 1025308
MFR# 1025308Series 102
$13.02List $16.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#10-32
CoatingTiCN
Description
The OSG 1025308 is a #10-32 UNF High-Speed Steel Standard tap with a TiCN finish. 4 flutes.
Specifications
ApplicationTapping
ChamferBottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.4724
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.194
Square length0.25
Square size0.152
Tap typeStandard
Threads per inch32
Thread directionRight Hand
Thread length in7/8
Thread limitH3
Thread size in#10-32
Thread standardUNF
