OSG

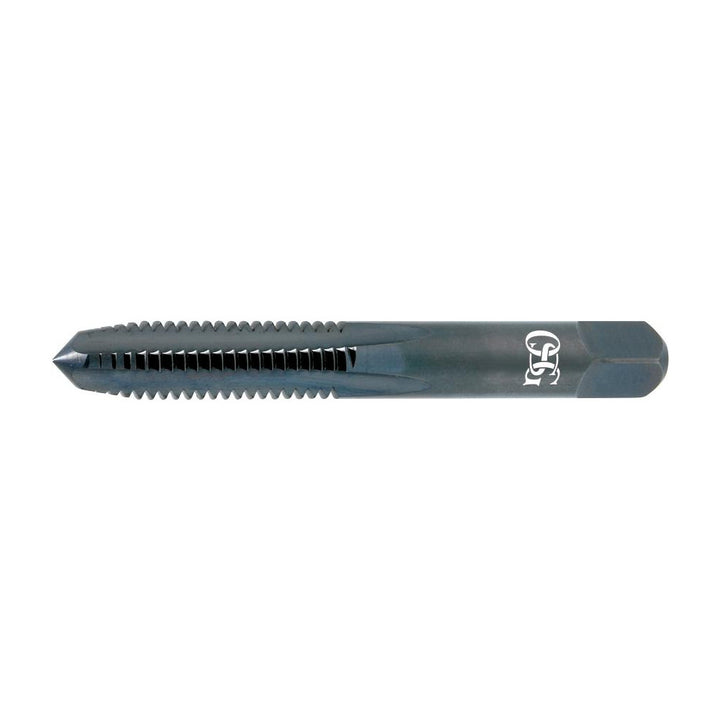

#12-24 UNC High-Speed Steel Standard Tap, TiCN - OSG 1025508
MFR# 1025508Series 102
$13.45List $17.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#12-24
CoatingTiCN
Description
The OSG 1025508 is a #12-24 UNC High-Speed Steel Standard tap with a TiCN finish. 4 flutes.
Specifications
ChamferPlug
Class of fit2B; 3B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.1124
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.22
Square length0.28125
Square size0.165
Tap typeStandard
Threads per inch24
Thread directionRight Hand
Thread length in15/16
Thread limitH3
Thread size in#12-24
Thread standardUNC
