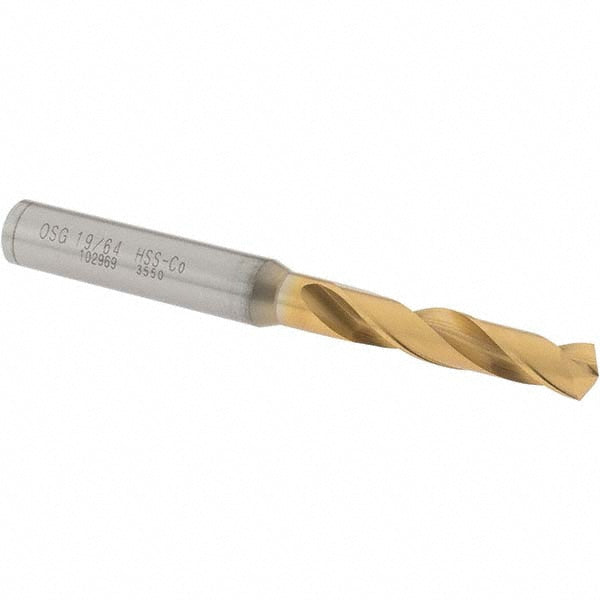

19/64" Cobalt High Speed Steel Screw Machine Drill Bit, TiN, 130° point - OSG 10296905

OSG

19/64" Cobalt High Speed Steel Screw Machine Drill Bit, TiN, 130° point - OSG 10296905

MFR# 10296905Series 1000

$51.05List $65.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size19/64
Flutes2
CoatingTiN

Description

The OSG 10296905 is a 19/64" Cobalt High Speed Steel Screw Machine drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 1-9/16 flute length, 3-3/8 overall length. Series 1000.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size in19/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-9/16
Flute typeSpiral
Number of flutes2
Overall length in3-3/8
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank diameter0.3750
Shank length in1-9/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
