OSG

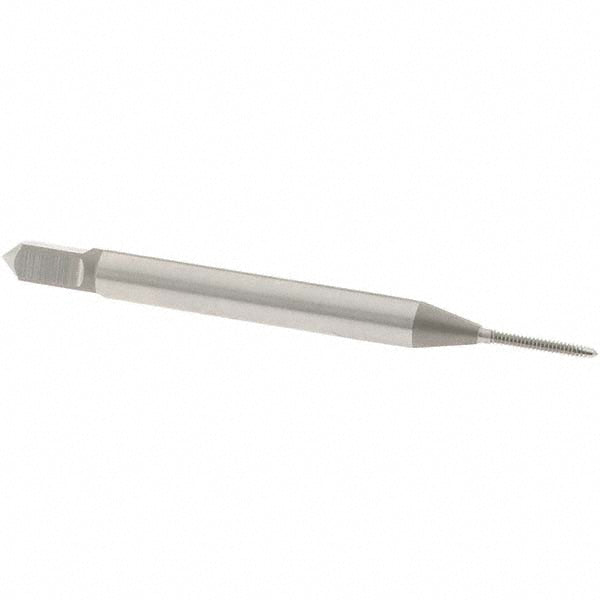

#00-90 UNC High-Speed Steel Standard Tap - OSG 1030000
MFR# 1030000Series S110
$38.04List $48.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#00-90
Description
The OSG 1030000 is a #00-90 UNC High-Speed Steel Standard tap. 2 flutes.
Specifications
ChamferPlug
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.3386
Number of flutes2
Overall length in1-9/16
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Tap typeStandard
Threads per inch90
Thread directionRight Hand
Thread length in1/4
Thread limitH1
Thread size in#00-90
Thread standardUNC
