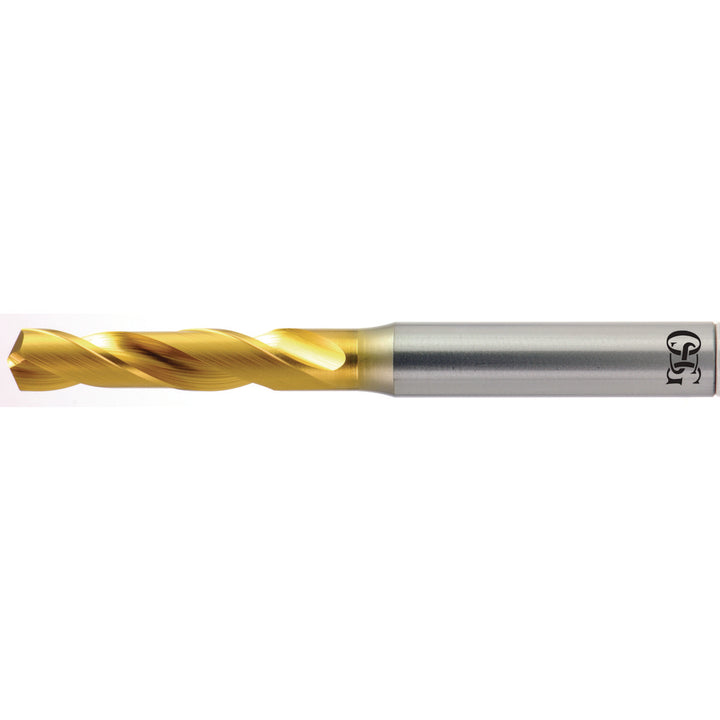

Letter W Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10386005

OSG

Letter W Cobalt High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 10386005

MFR# 10386005Series 1000

$83.54List $107.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 10386005 is a Letter W Cobalt High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel. 1-7/8 flute length, 3-31/32 overall length. Series 1000.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size0.3860
Drill bit size letterW
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-7/8
Flute typeSpiral
Number of flutes2
Overall length in3-31/32
Point typeStandard
Primary workpiece materialSteel; Alloy Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialCobalt High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
