OSG
#8-32 UNC High-Speed Steel Standard Tap - OSG 1068500
MFR# 1068500Series 104
$9.04List $11.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#8-32
Description

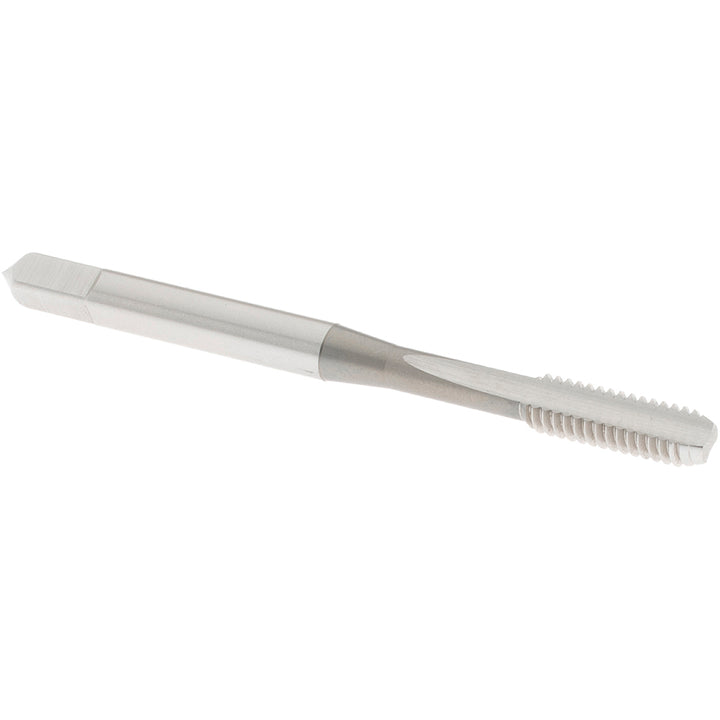

The OSG 1068500 is a #8-32 UNC High-Speed Steel Standard tap. 2 flutes.
Specifications
ApplicationTapping
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.3938
Number of flutes2
Overall length in2-1/8
OversizeNo
Shank diameter0.168
Square length0.25
Square size0.131
Tap typeStandard
Threads per inch32
Thread directionRight Hand
Thread length in3/4
Thread limitH2
Thread size in#8-32
Thread standardUNC
