OSG

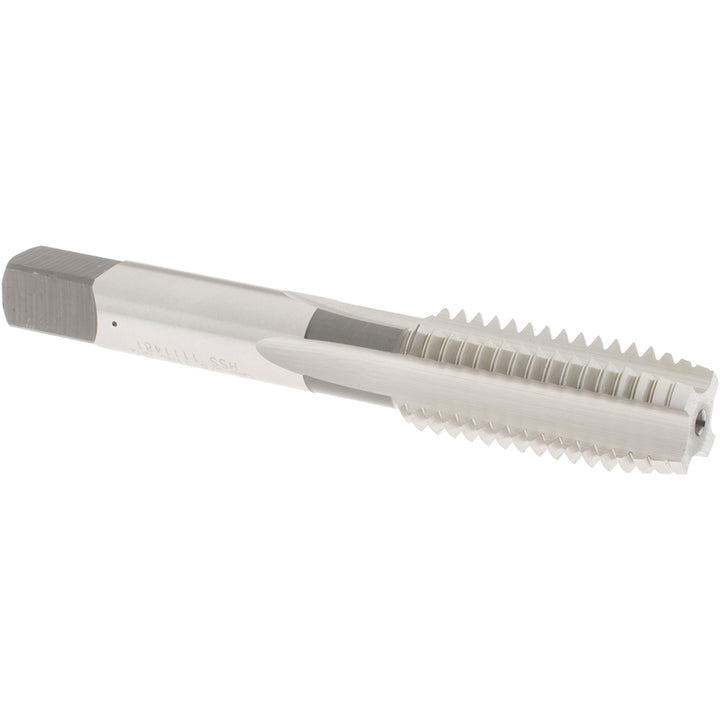

5/8-11 UNC High-Speed Steel Standard Tap - OSG 1113700
MFR# 1113700Series 101
$48.76List $62.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
Description
The OSG 1113700 is a 5/8-11 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationTapping
ChamferPlug
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.0000
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.48
Square length0.5625
Square size0.36
Tap typeStandard
Threads per inch11
Thread directionRight Hand
Thread length in1-13/16
Thread limitH2
Thread size in5/8-11
Thread standardUNC
