OSG

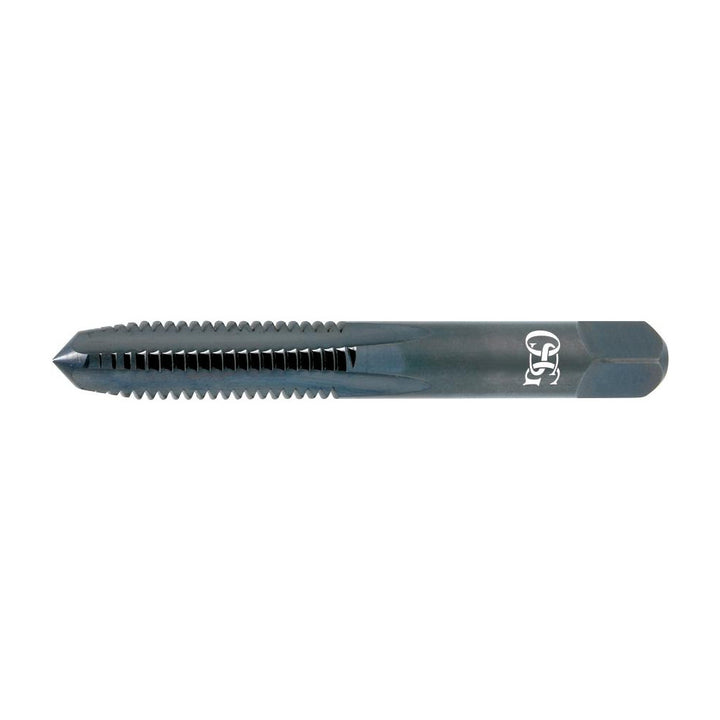

1/4-28 UNF High-Speed Steel Standard Tap, Oxide - OSG 1120401
MFR# 1120401Series 101
$7.85List $10.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-28
CoatingOxide
Description
The OSG 1120401 is a 1/4-28 UNF High-Speed Steel Standard tap with a Oxide finish. 4 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishOxide
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.1811
Number of flutes4
Overall length in2-1/2
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Tap typeStandard
Threads per inch28
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in1/4-28
Thread standardUNF
