OSG

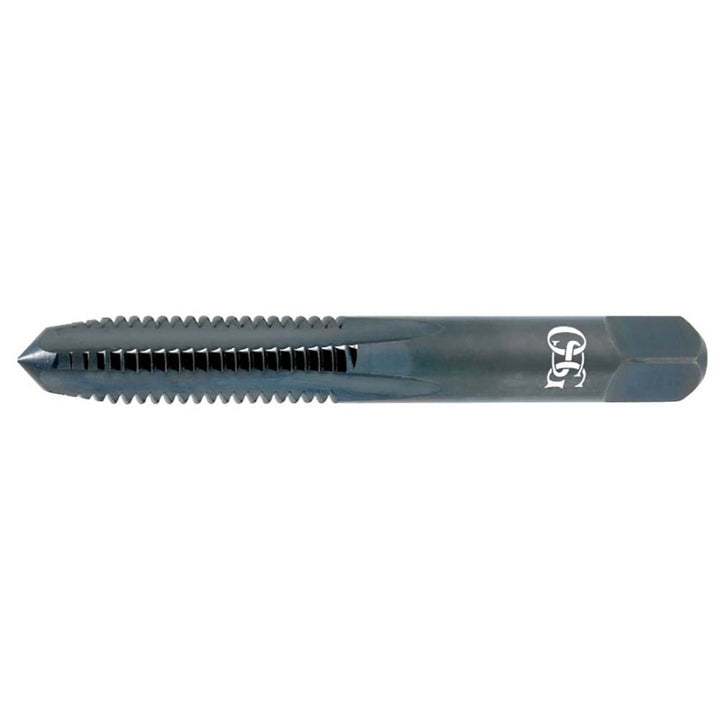

1/4-28 UNF Tap, Steam Oxide - OSG 1120501
MFR# 1120501Series 101
$7.85List $10.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-28
CoatingSteam Oxide
Description
The OSG 1120501 is a 1/4-28 UNF tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferBottoming
Coating finishSteam Oxide
Coolant throughNo
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.1811
Number of flutes4
Overall length2.5000
Shank diameter0.255
Square length0.3125
Square size0.191
Threads per inch28
Thread directionRight Hand
Thread length0.748031496062992
Thread limitH3
Thread size in1/4-28
Thread standardUNF
