OSG
1/4-28 UNF High-Speed Steel Standard Tap - OSG 1120502
MFR# 1120502Series 101
$9.55List $12.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-28
Description

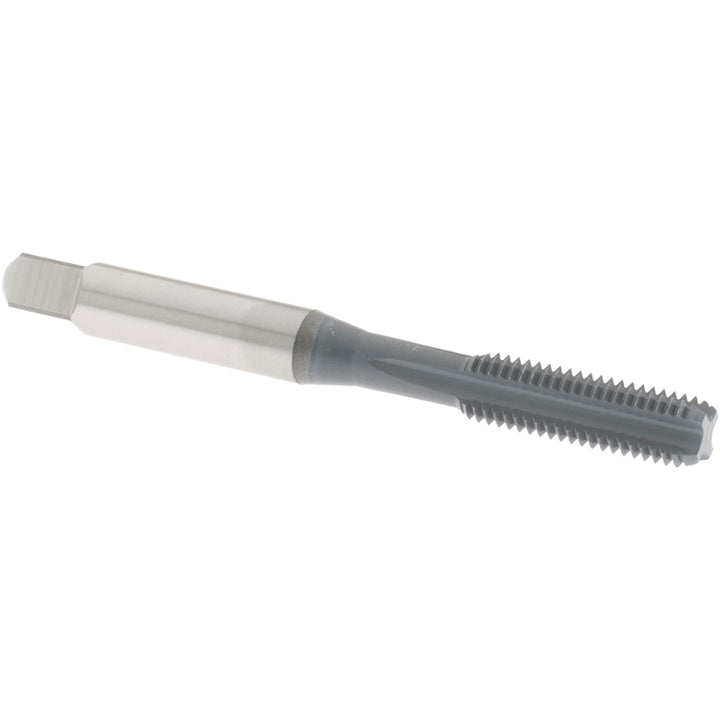

The OSG 1120502 is a 1/4-28 UNF High-Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationTapping
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes4
Overall length in2-1/2
Tap typeStandard
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in1/4-28
Thread standardUNF
