OSG

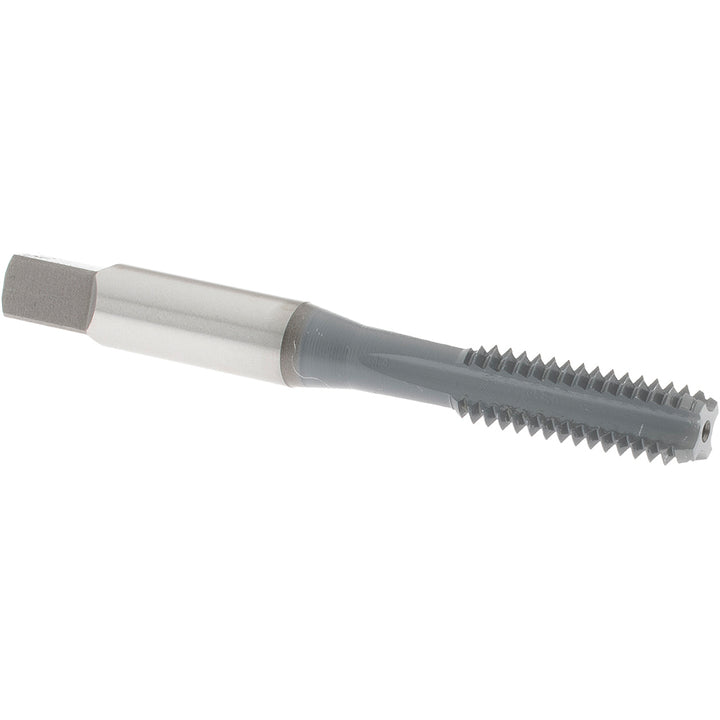

5/16-18 UNC High-Speed Steel Standard Tap - OSG 1120802
MFR# 1120802Series 101
$11.56List $14.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/16-18
Description
The OSG 1120802 is a 5/16-18 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationTapping
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes4
Overall length in2-23/32
Tap typeStandard
Thread directionRight Hand
Thread length in1-1/8
Thread limitH3
Thread size in5/16-18
Thread standardUNC
