OSG

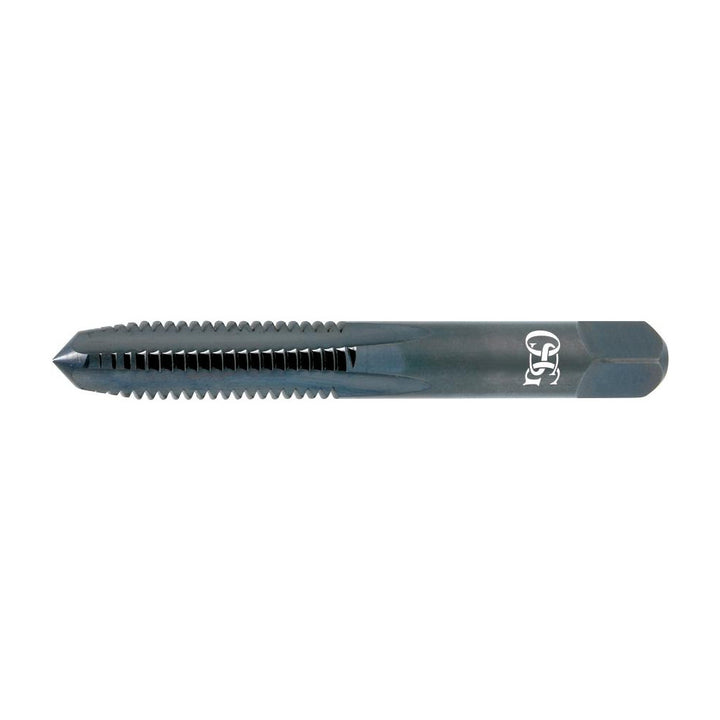

5/16-24 UNF High-Speed Steel Standard Tap, Oxide - OSG 1121001
MFR# 1121001Series 101
$9.72List $12.46
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/16-24
CoatingOxide
Description
The OSG 1121001 is a 5/16-24 UNF High-Speed Steel Standard tap with a Oxide finish. 4 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishOxide
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.3228
Number of flutes4
Overall length in2-23/32
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Tap typeStandard
Threads per inch24
Thread directionRight Hand
Thread length in1-1/8
Thread limitH3
Thread size in5/16-24
Thread standardUNF
