OSG

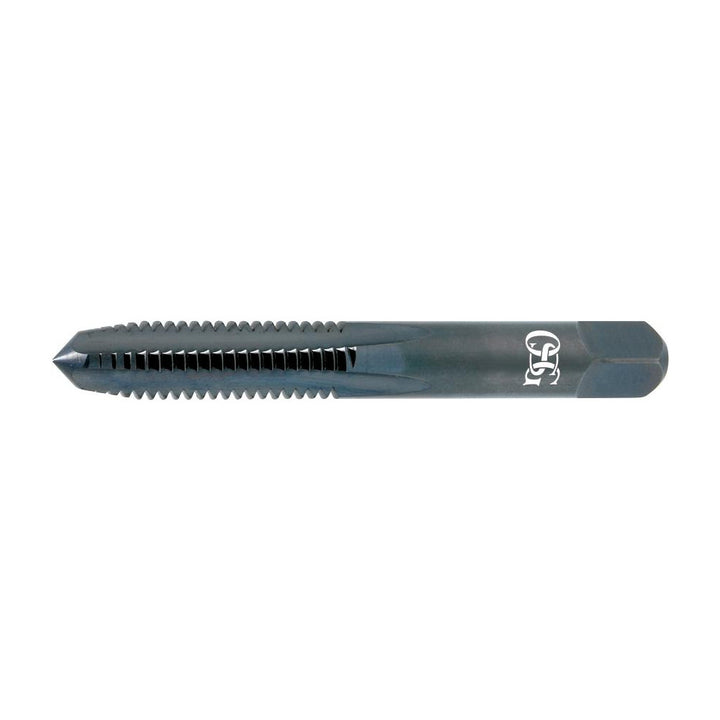

3/8-24 UNF High-Speed Steel Standard Tap, Oxide - OSG 1121701
MFR# 1121701Series 101
$10.96List $14.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/8-24
CoatingOxide
Description
The OSG 1121701 is a 3/8-24 UNF High-Speed Steel Standard tap with a Oxide finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishOxide
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.4134
Number of flutes4
Overall length in2-15/16
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Tap typeStandard
Threads per inch24
Thread directionRight Hand
Thread length in1-1/4
Thread limitH3
Thread size in3/8-24
Thread standardUNF
