OSG

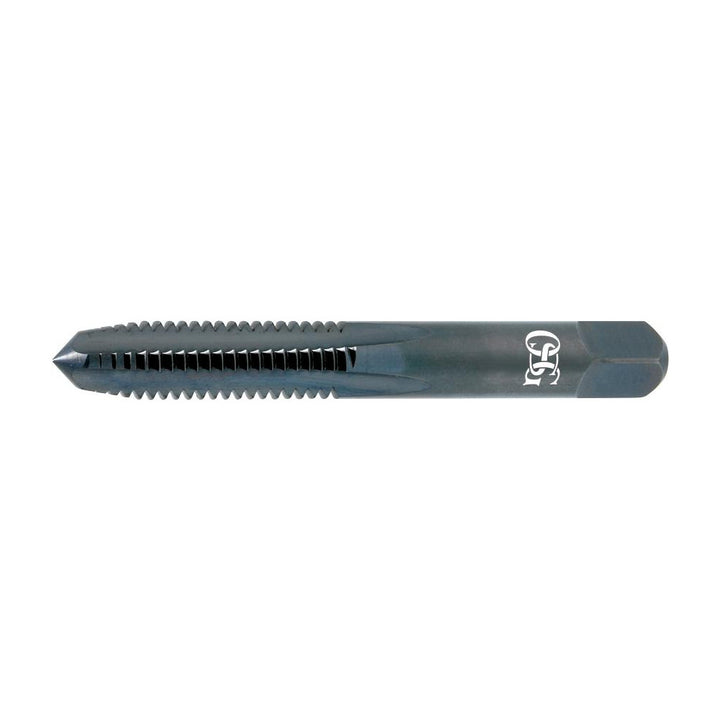

5/8-18 UNF High-Speed Steel Standard Tap - OSG 1124002
MFR# 1124002Series 101
$46.73List $59.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
Description
The OSG 1124002 is a 5/8-18 UNF High-Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationTapping
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes4
Overall length in3-13/16
Tap typeStandard
Thread directionRight Hand
Thread length in1-13/16
Thread limitH3
Thread size in5/8-18
Thread standardUNF
