OSG

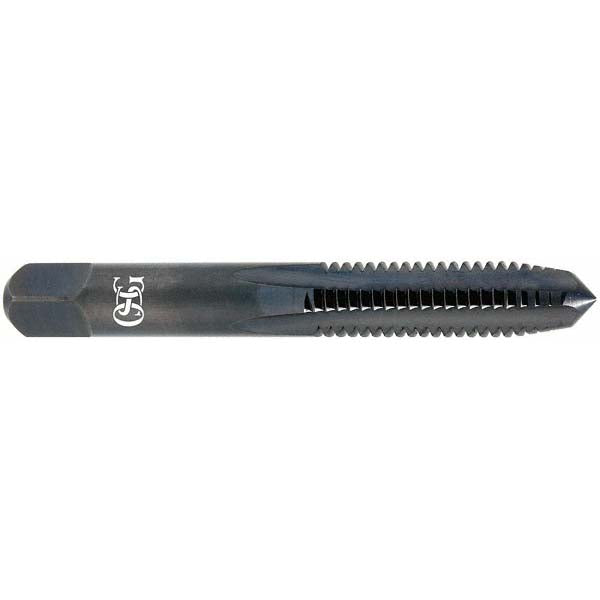

11/16-16 UNS High-Speed Steel Standard Tap, TiCN - OSG 1124608
MFR# 1124608Series 101
$71.66List $91.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size11/16-16
CoatingTiCN
Description
The OSG 1124608 is a 11/16-16 UNS High-Speed Steel Standard tap with a TiCN finish. 4 flutes.
Specifications
ChamferPlug
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.1299
Number of flutes4
Overall length in4-1/32
OversizeNo
Shank diameter0.542
Square length0.625
Square size0.406
Tap typeStandard
Threads per inch16
Thread directionRight Hand
Thread length in1-13/16
Thread limitH3
Thread size in11/16-16
Thread standardUNS
