OSG

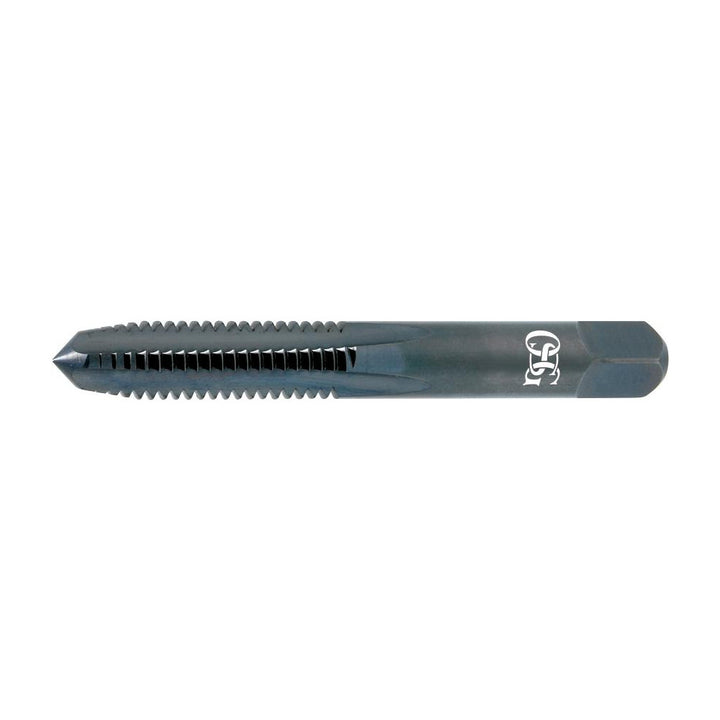

3/4-10 UNC High-Speed Steel Standard Tap, TiN - OSG 1124905
MFR# 1124905Series 101
$78.29List $100.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingTiN
Description
The OSG 1124905 is a 3/4-10 UNC High-Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ChamferPlug
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.2247
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.59
Square length0.6875
Square size0.442
Tap typeStandard
Threads per inch10
Thread directionRight Hand
Thread length in2
Thread limitH3
Thread size in3/4-10
Thread standardUNC
