OSG

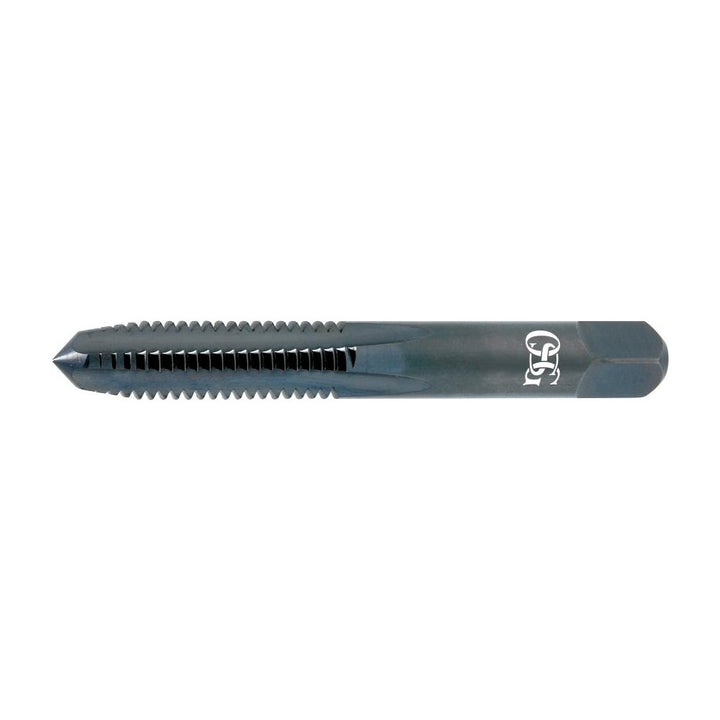

1-8 UNC High-Speed Steel Standard Tap, TiN - OSG 1136105
MFR# 1136105Series 101
$137.65List $176.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-8
CoatingTiN
Description
The OSG 1136105 is a 1-8 UNC High-Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.7247
Number of flutes4
Overall length in5-1/8
OversizeNo
Shank diameter0.8
Square length0.8125
Square size0.6
Tap typeStandard
Threads per inch8
Thread directionRight Hand
Thread length in2-1/2
Thread limitH4
Thread size in1-8
Thread standardUNC
