OSG

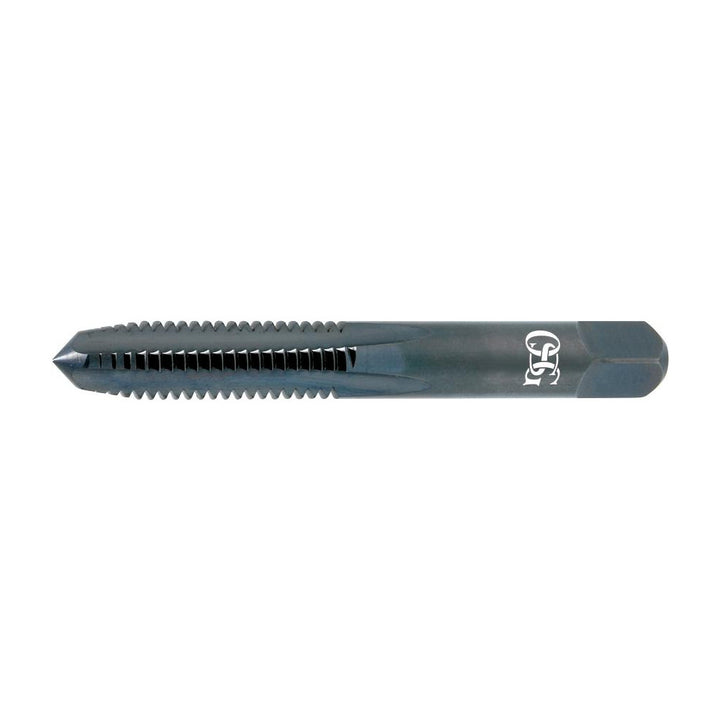

1-1/8-7 UNC High-Speed Steel Standard Tap - OSG 1137000
MFR# 1137000Series 101
$199.43List $251.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/8-7
Description
The OSG 1137000 is a 1-1/8-7 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.9494
Number of flutes4
Overall length in5-7/16
OversizeNo
Shank diameter0.896
Square length0.875
Square size0.672
Tap typeStandard
Threads per inch7
Thread directionRight Hand
Thread length in2-9/16
Thread limitH4
Thread size in1-1/8-7
Thread standardUNC
