OSG

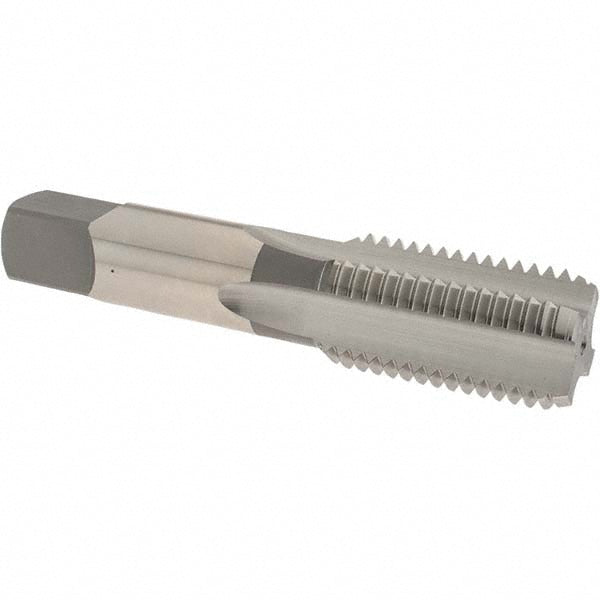

1-1/4-7 UNC High-Speed Steel Standard Tap - OSG 1137700
MFR# 1137700Series 101
$233.74List $299.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/4-7
Description
The OSG 1137700 is a 1-1/4-7 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length3.0000
Number of flutes4
Overall length in5-3/4
OversizeNo
Shank diameter1.21
Square length1
Square size0.766
Tap typeStandard
Threads per inch7
Thread directionRight Hand
Thread length in2-9/16
Thread limitH4
Thread size in1-1/4-7
Thread standardUNC
