OSG

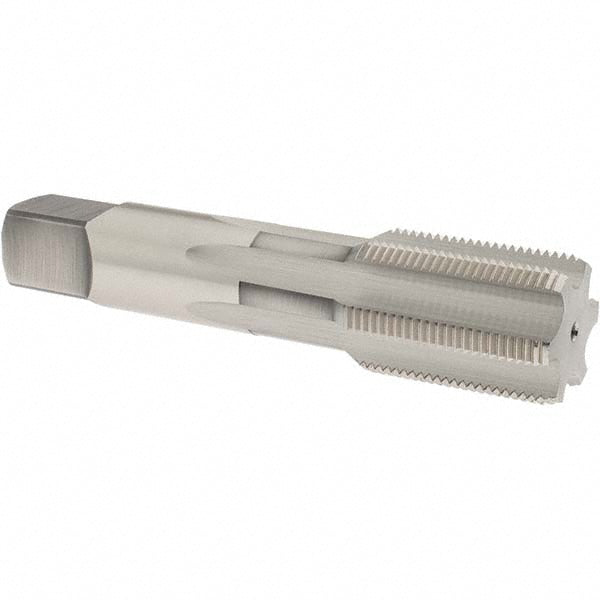

1-3/8-12 UNF High-Speed Steel Standard Tap - OSG 1138600
MFR# 1138600Series 101
$296.32List $380.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Thread size1-3/8-12
Description
The OSG 1138600 is a 1-3/8-12 UNF High-Speed Steel Standard tap. 6 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length3.1614
Number of flutes6
Overall length in6-1/16
OversizeNo
Shank diameter1.18
Square length1.0625
Square size0.831
Tap typeStandard
Threads per inch12
Thread directionRight Hand
Thread length in3
Thread limitH4
Thread size in1-3/8-12
Thread standardUNF
