OSG

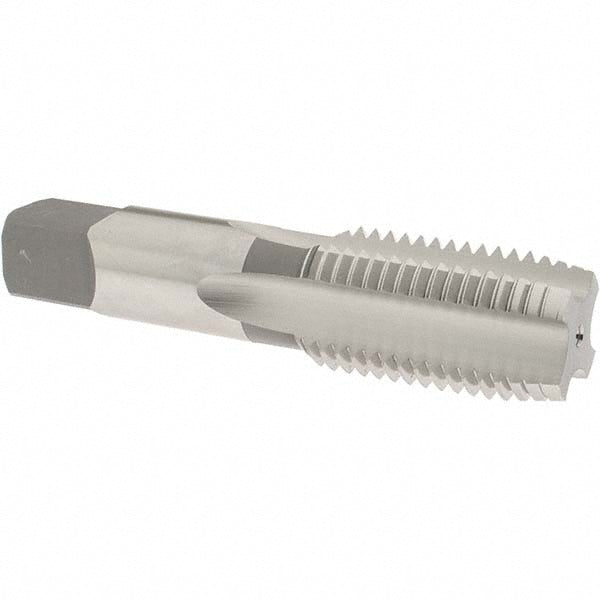

1-1/2-6 UNC High-Speed Steel Standard Tap - OSG 1138800
MFR# 1138800Series 101
$338.65List $434.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/2-6
Description
The OSG 1138800 is a 1-1/2-6 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length3.3819
Number of flutes4
Overall length in6-3/8
OversizeNo
Shank diameter1.233
Square length1.125
Square size0.925
Tap typeStandard
Threads per inch6
Thread directionRight Hand
Thread length in3
Thread limitH4
Thread size in1-1/2-6
Thread standardUNC
