OSG

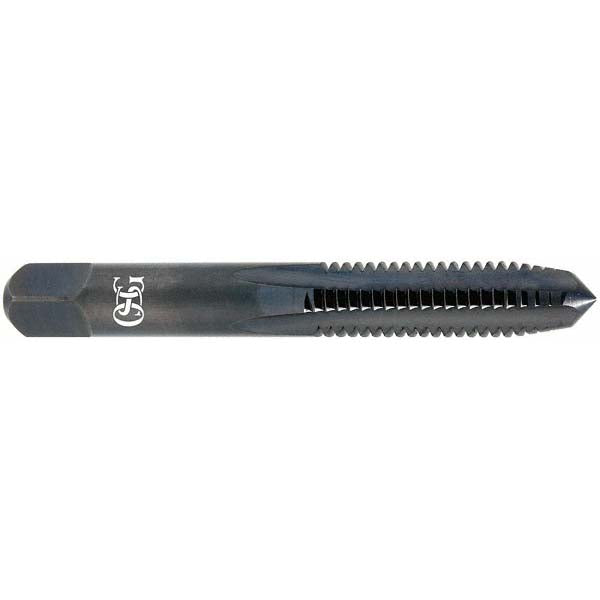

9/16-18 UNF High-Speed Steel Standard Tap, TiCN - OSG 1143408
MFR# 1143408Series 101
$55.32List $70.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-18
CoatingTiCN
Description
The OSG 1143408 is a 9/16-18 UNF High-Speed Steel Standard tap with a TiCN finish. 4 flutes.
Specifications
ApplicationTapping
ChamferPlug
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.9494
Number of flutes4
Overall length in3-19/32
OversizeNo
Shank diameter0.429
Square length0.5
Square size0.322
Tap typeStandard
Threads per inch18
Thread directionRight Hand
Thread length in1-21/32
Thread limitH5
Thread size in9/16-18
Thread standardUNF
