OSG
3/4-10 UNC High-Speed Steel Standard Tap - OSG 1145000
MFR# 1145000Series 101
$64.05List $82.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
Description

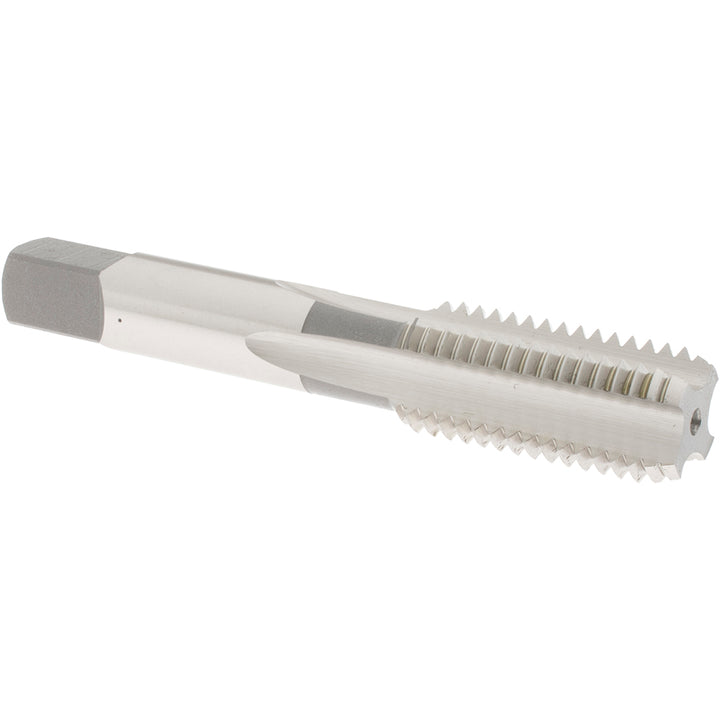

The OSG 1145000 is a 3/4-10 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationTapping
ChamferBottoming
Class of fit2B; 3B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.2247
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.59
Square length0.6875
Square size0.442
Tap typeStandard
Threads per inch10
Thread directionRight Hand
Thread length in2
Thread limitH5
Thread size in3/4-10
Thread standardUNC
