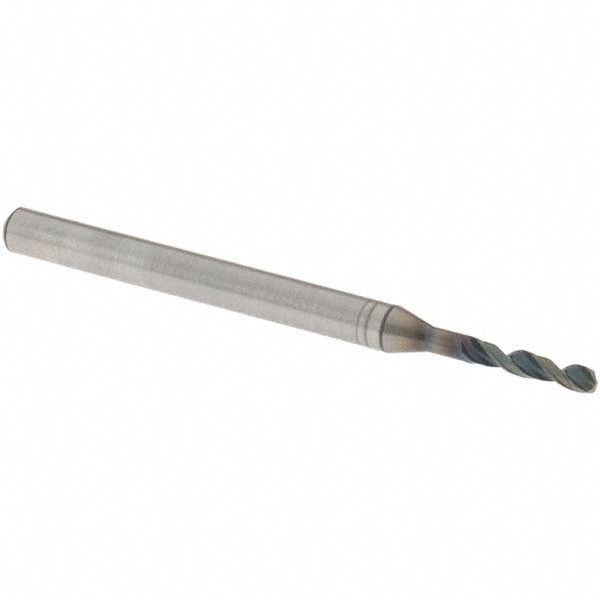

0.0650" High-Speed Steel Screw Machine Drill Bit, WD1, 140° point - OSG 11511615

OSG

0.0650" High-Speed Steel Screw Machine Drill Bit, WD1, 140° point - OSG 11511615

MFR# 11511615Series 1150

$21.26List $27.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingWD1

Description

The OSG 11511615 is a 0.0650" High-Speed Steel Screw Machine drill bit with a WD1 finish, 140° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1150.

Specifications

Coating finishWD1
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0650
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)10.00
Flute typeSpiral
Number of flutes2
Overall length1.6535
Point typeFaceted
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.1181
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
