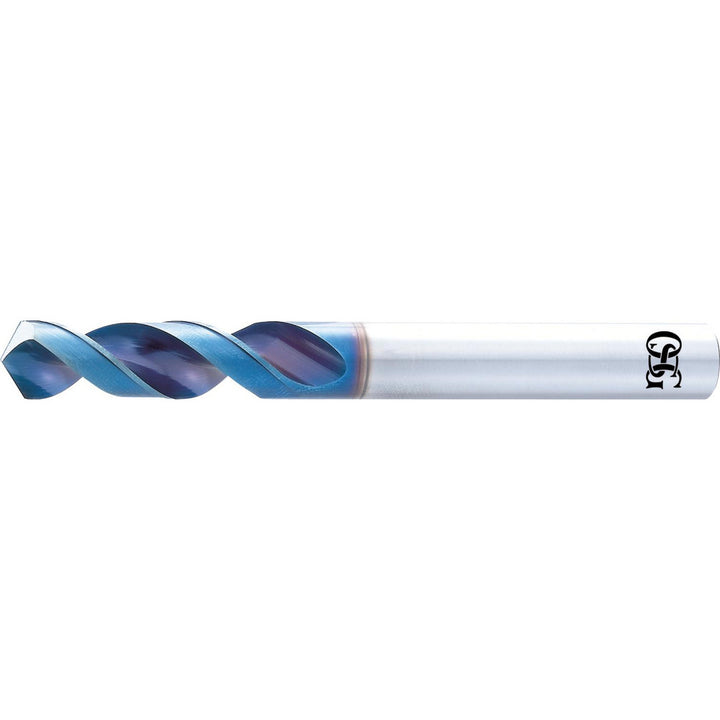

#42 High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 11518815

OSG

#42 High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 11518815

MFR# 11518815Series 1150

$23.35List $29.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 11518815 is a #42 High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1150.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0935
Drill bit size range0.0000 to 0.1000
Drill bit size wire#42
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)14.00
Flute typeSpiral
Number of flutes2
Overall length (mm)46.00
Point typeFaceted
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
