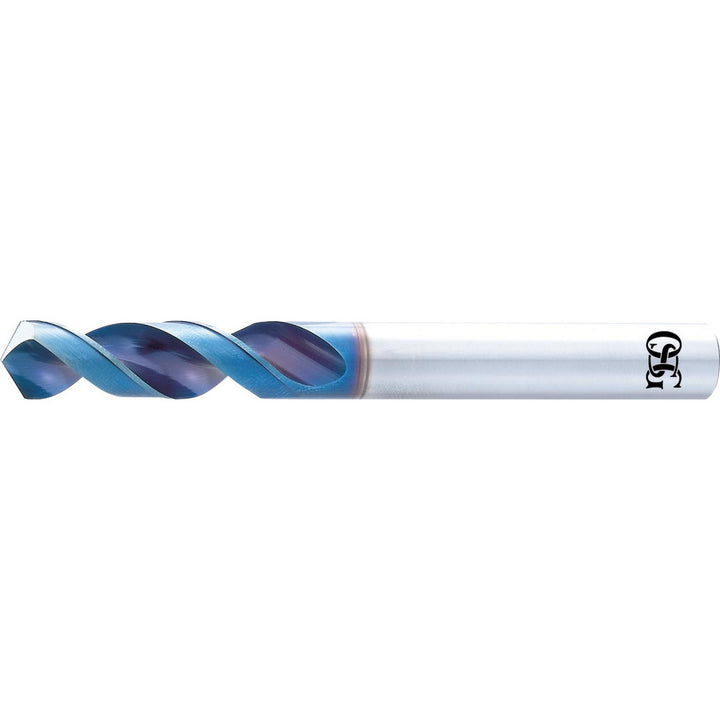

#36 High-Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 11522215
MFR# 11522215Series 1150
$22.76List $29.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 11522215 is a #36 High-Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1150.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.1065
Drill bit size range0.1000 to 0.1500
Drill bit size wire#36
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)16.00
Flute typeSpiral
Number of flutes2
Overall length1.8898
Point typeFaceted
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.1181
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
