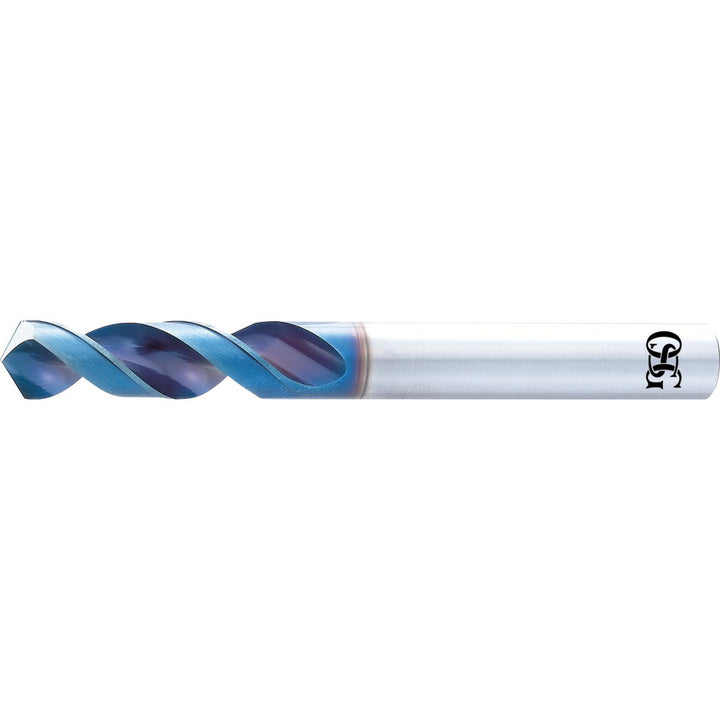

#14 High-Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 11541315

OSG

#14 High-Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 11541315

MFR# 11541315Series 1150

$38.18List $48.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 11541315 is a #14 High-Speed Steel Screw Machine drill bit with a Coated finish, 120° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1150.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1820
Drill bit size range0.1500 to 0.2000
Drill bit size wire#14
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Number of flutes2
Overall length2.6772
Point typeFaceted
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
